Why are shaped LED mirrors so hard to source?

They require two capabilities that rarely sit in one factory: waterjet glass cutting with polished profile edges, and LED module and driver assembly with demister bonding. Most suppliers do one and buy in the other, which is where profile misalignment and warranty gaps come from. We run both processes in one program.

Can you build an LED module for our own shape?

Yes. Send a vector outline and we return a lit pre-production sample in 10 days. The LED strip, the demister pad and the touch layout are all set to your profile. There is no tooling cost; MOQ for a custom profile in the lit range is 100 pcs.

What is the anti-fog performance?

The 12 W pad clears the full mirror face in roughly three minutes from a cold start in a steamed bathroom, and holds it clear while powered. Because the pad is profile-cut rather than rectangular, there is no fogged crescent at the arch head, which is the usual failure on retrofitted shaped mirrors.

What is the MOQ and lead time?

1 pc and 30-40 days for the standard arch and pebble profiles; 100 pcs and 40 days for a customer-drawn profile. A pre-production sample is required before bulk on any custom profile.

Organic Pebble Backlit LED Mirror

SKU MW-IL-02 · Irregular & Shaped Mirrors

Minimum order1 pcs
Lead time30-40 days
Unit priceOn request (FOB / EXW)

Replies within 24 hours · NDA available for OEM projects

Boutique and design-hotel bathrooms
Premium residential and apartment projects
Distributors needing a hard-to-source differentiator
Bathroom showroom display anchors

Specifications

Full Technical Specifications

Overview

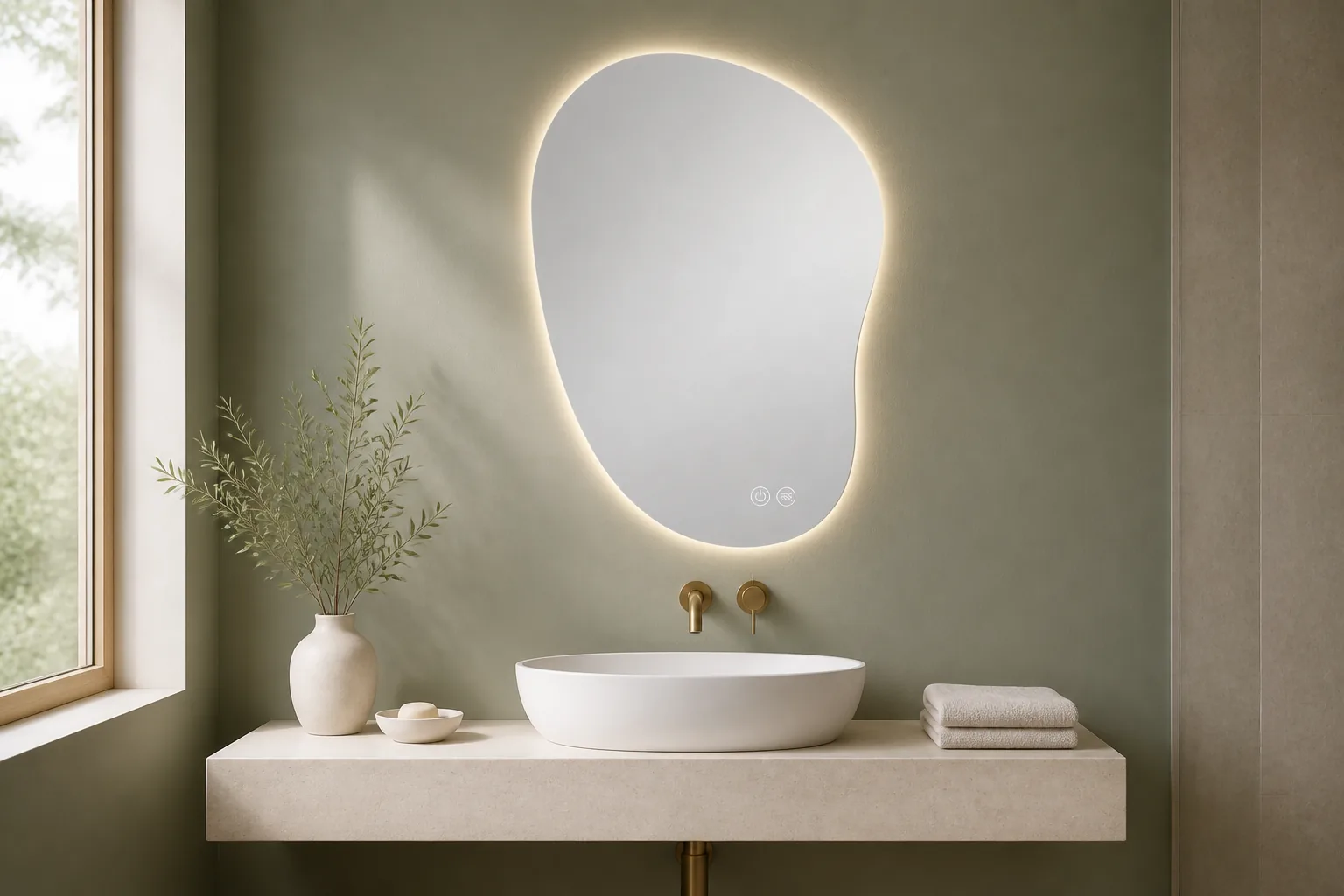

A frameless organic pebble mirror with a profile-following LED backlight, a profile-cut demister pad and two capacitive controls for power and demisting.

The scarcest combination in the mirror market: a shaped panel with an integrated backlit LED module, dimming, colour-temperature switching and anti-fog. Our primary differentiation product.

Technical Specifications

Parameter	Value
Model	MW-IL-02
Model shape	Organic pebble
Lighting	Profile-following LED backlight
Touch controls	Power, anti-fog
Glass	5 mm copper-free silver mirror, waterjet-cut profile
Glass compliance	Copper-free mirror glass supplied by a mirror plant holding an SGS RoHS test report (No. NGBEC26004666401, June 2026) — all ten restricted substances not detected. Report issued with the quotation.
Profile	Arch, pebble or customer-drawn outline
Light source	Profile-following SMD 2835 LED backlight, flicker-free driver
Colour rendering	CRI 90+ standard, CRI 95+ available
Colour temperature	3000K / 4000K / 6000K three-CCT switching with memory
Electrical	AC 100-240V 50/60Hz, hard-wired, IP44 rated
Anti-fog	12 W heated demister pad shaped to the panel profile
Controls	Backlit capacitive touch icons, no printed text
Standard sizes	600x900 arch, 700x1000 arch, 800x600 pebble
Compliance documents	Supplier RoHS material declarations; test reports issued with each quotation
Packaging	EPE corner protection, honeycomb board and five-layer carton; ISTA 3A tested
Warranty	3 years on LED module and driver, 5 years on silvering
Customisation	Custom sizes, frame finishes, logo and retail packaging; OEM and ODM accepted
Minimum order quantity	1 pc
Lead time	30-40 days

Applications

Boutique hotel and design-hotel bathrooms that want the arch or organic silhouette without giving up lit-mirror functionality.
Premium residential and apartment projects where the bathroom mirror is a specified design element.
Distributors and online sellers who need a product their competitors cannot easily source, at a defensible margin.
Showrooms and design studios using a lit shaped mirror as the display anchor of a bathroom range.

Features & Advantages

The LED backlight follows the cut profile rather than sitting in a rectangular tray behind a shaped panel, which is the visible difference between a purpose-built product and a retrofit.
The demister pad is cut to the panel profile so there is no unheated zone at the curve.
Touch icons are unlabelled backlit capacitive symbols, so the same panel ships to every language market without a print change.
Customer-drawn profiles are supported on the lit range, not only on the plain range.
Carries the same 3-year electronics warranty as the rectangular LED range.

Supply Terms

Minimum order quantity 1 pc; mixed orders across models count toward the same container.
Lead time 30-40 days from deposit or sample approval, whichever is later; pre-production samples in 7 days.
OEM and ODM accepted: custom sizes, finishes, logo and retail packaging.
ISTA 3A tested packaging with a 3% free spare-parts kit on every order.
FOB, CIF, CFR, DDP and EXW supported; quotation returned within 24 hours.
