What drawing format do you need?

A vector outline in DXF, AI or SVG with dimensions, plus a written note of the panel thickness, backing class and any cut-outs. If you only have a PDF or a survey sketch we will redraw it and issue a shop drawing for your approval before cutting.

How do you handle site dimension changes?

We hold the cut release until you confirm the final site survey. If dimensions change after release, panels already cut cannot be resized, so we build a small over-order into project quotations for exactly this reason and price it transparently.

What is the largest panel you can supply?

1800 x 2400 mm as a single panel with CAT II backing. Above that we design a jointed panel scheme with a channel or shadow-gap detail and issue it as part of the shop drawing.

Horizontal Wave-Edge Custom-Cut Feature Mirror

SKU MW-CS-02 · Irregular & Shaped Mirrors

Minimum order1 pcs
Lead time30-40 days
Unit priceOn request (FOB / EXW)

Replies within 24 hours · NDA available for OEM projects

Hotel bathrooms cut around columns and risers
Show homes and developer sales suites
Retail and hospitality fit-out cut schedules
Refurbishment matching existing openings

Specifications

Full Technical Specifications

Overview

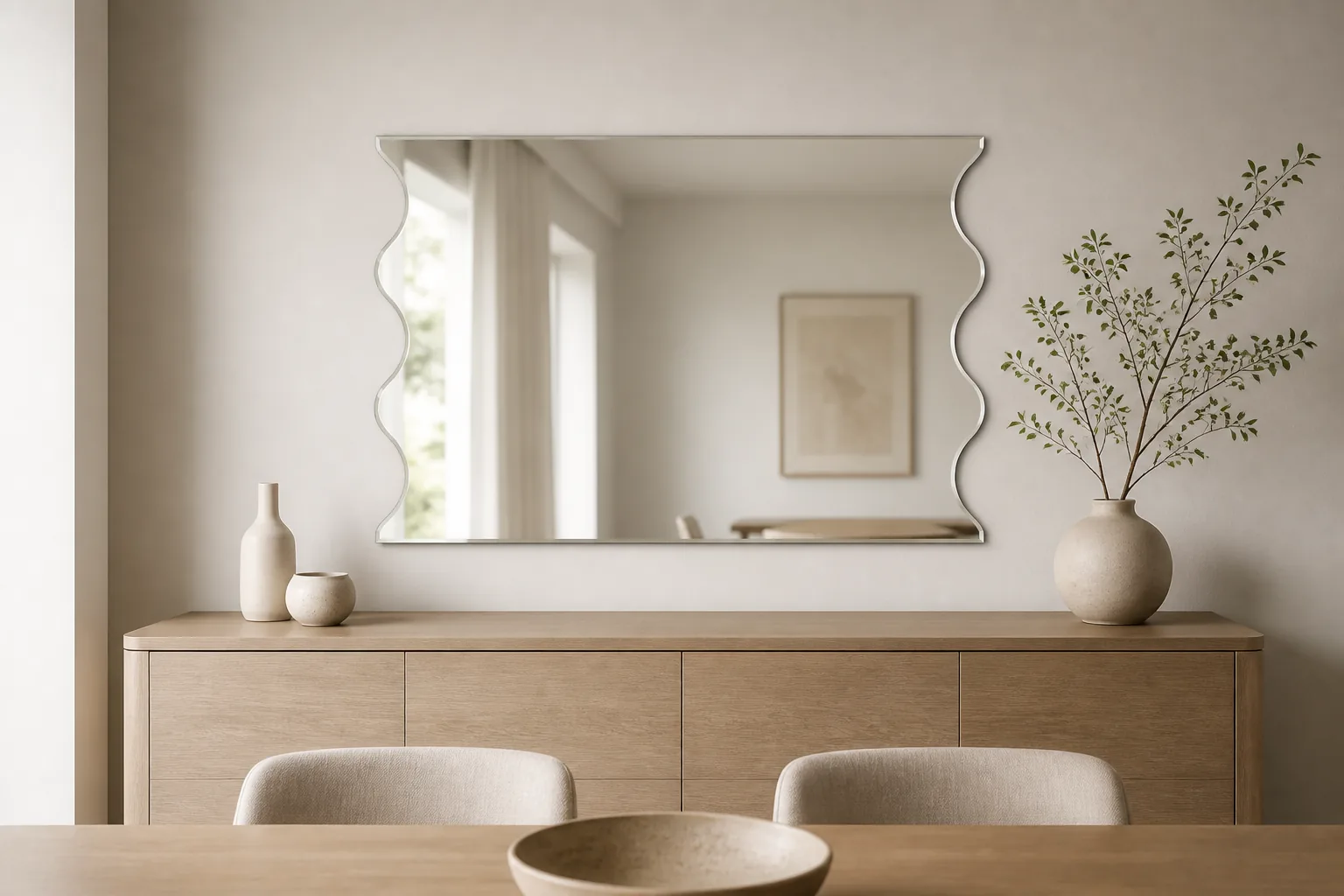

A horizontal feature mirror with a wave-edge profile cut to a designer's supplied outline, typical of show-home and sales-suite installations where the mirror is drawn rather than selected.

Drawing-to-glass service for hotel, show-home and commercial fit-outs where the mirror is a piece of the architecture rather than a product from a catalogue.

Technical Specifications

Parameter	Value
Model	MW-CS-02
Model shape	Horizontal wave-edge profile, cut to supplied vector outline
Documentation	Shop drawing and numbered cut schedule issued for approval
Glass	5 mm or 6 mm silver mirror; copper-free and low-iron available
Glass compliance	Copper-free mirror glass supplied by a mirror plant holding an SGS RoHS test report (No. NGBEC26004666401, June 2026) — all ten restricted substances not detected. Report issued with the quotation.
Cutting	CNC waterjet from supplied DXF, AI or SVG outline
Edge treatment	Polished, bevelled or mitred edge to drawing
Cut-outs	Socket, switch, tap and fixing cut-outs to drawing
Safety backing	CAT I or CAT II; CAT II standard on commercial work
Maximum panel	1800 x 2400 mm single panel
Mounting	Concealed cleat, channel, or adhesive-and-clip to detail
Compliance documents	Supplier RoHS material declarations; material certificate issued per batch
Packaging	EPE corner protection, honeycomb board and five-layer carton; ISTA 3A tested
Warranty	5 years against silvering failure
Customisation	Custom sizes, frame finishes, logo and retail packaging; OEM and ODM accepted
Minimum order quantity	1 pc
Lead time	30-40 days

Applications

Hotel bathroom and public-area mirrors cut around structural columns, service risers and lighting positions.
Show homes and sales suites where a feature mirror is drawn by the interior designer rather than selected.
Retail and hospitality fit-outs requiring mirror panels to a cut schedule with numbered panels for site sequencing.
Commercial refurbishment where new mirrors must fit existing openings and existing fixing positions.

Features & Advantages

We issue a shop drawing and a numbered cut schedule for approval before cutting, which is what prevents a whole container arriving 15 mm out.
Panels are marked and packed in installation sequence, not in size order, so the site crew unpacks in the order they fit.
Cut-outs for sockets, taps and fixings are done in the factory rather than being drilled on site into finished mirror.
CAT II safety backing is standard on commercial work rather than an optional line item.

Supply Terms

Minimum order quantity 1 pc; mixed orders across models count toward the same container.
Lead time 30-40 days from deposit or sample approval, whichever is later; pre-production samples in 7 days.
OEM and ODM accepted: custom sizes, finishes, logo and retail packaging.
ISTA 3A tested packaging with a 3% free spare-parts kit on every order.
FOB, CIF, CFR, DDP and EXW supported; quotation returned within 24 hours.
