Hotel bathrooms in volume
Bathroom distributor LED ranges
Residential development projects
Single-parcel bathroom ecommerce
600 x 800 mmStandard sizes
4 mm copper-free silver mirrorGlass
Backlit LEDLighting
Wall-hungMounting
1 pcMOQ
25-30 daysLead time
Specifications
Full Technical Specifications
Overview

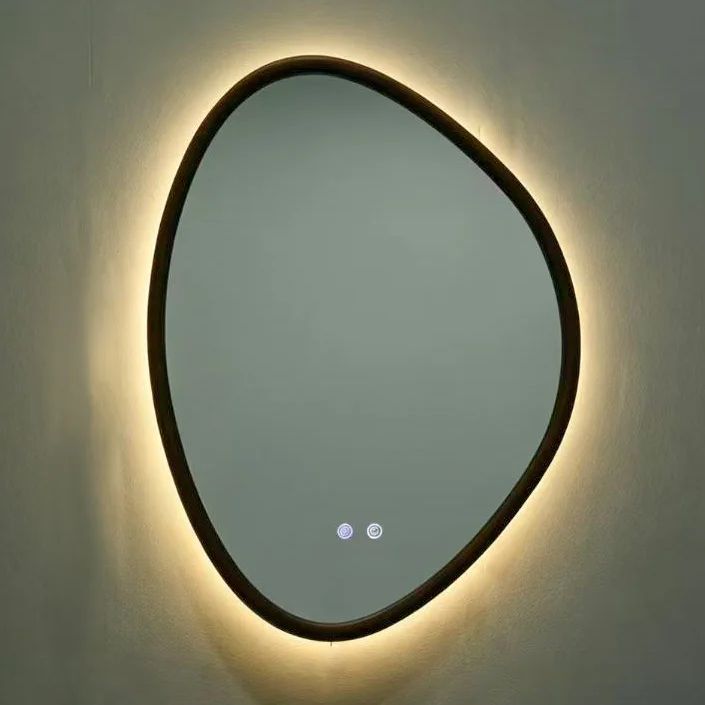

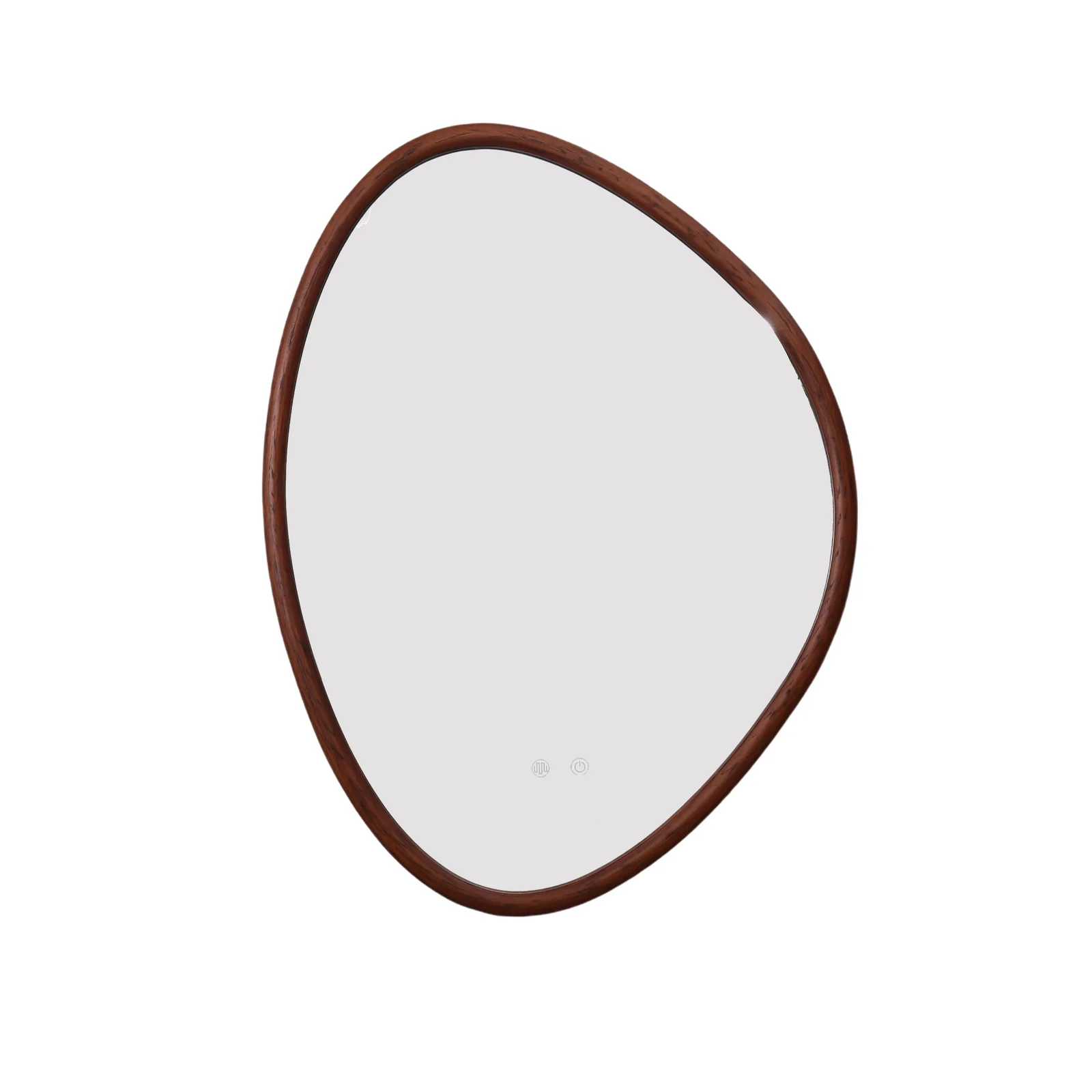

Organic-shaped silver mirror in a slim walnut-finish frame with a perimeter LED backlight, dual colour temperature, anti-fog pad and touch switch with memory.
Supplied to hotel projects, bathroom distributors and online sellers under one specification standard, with supplier RoHS and REACH material declarations issued alongside every quotation.
Technical Specifications
Parameter
Value
Model
MW-BL-24
Shape
Irregular
Standard sizes
600 x 800 mm
Thickness
45 mm
Glass
4 mm anti-oxidation copper-free silver mirror
Frame and backing
Frameless, sealed back
Lighting
backlit LED, dual colour temperature; strip can be specified as single-CCT, dual-CCT or RGB
Control
touch switch with memory
Anti-fog
Demister pad bonded to the rear face
Mounting
cross hook or aluminium bar hook, with waterproof fittings box
Electrical
Voltage and plug matched to the destination market
Glass options
aluminium, silver, copper-free silver or tempered mirror (MOQ 60 pcs per option)
Export carton
670 x 85 x 880 mm
Packaging
EPS base tray, EPS pads and five-layer carton
Minimum order quantity
1 pc
Lead time
25-30 days
Customisation
Custom sizes, colours, logo and retail packaging; OEM and ODM accepted
Applications
Hotel bathrooms specified in volume under one lighting and control standard.
Bathroom and sanitaryware distributors adding an LED mirror line.
Residential developers and fit-out contractors buying by the project.
Online bathroom sellers who need a mirror that ships safely as a single parcel.
Features & Advantages
Copper-free silver backing resists edge blackening in humid rooms, the usual failure point of standard mirror.
Touch switch with memory returns to the last brightness and colour setting at power-on.
Bonded demister pad keeps the centre of the glass clear after a shower.
Glass can be switched to aluminium, silver, copper-free or tempered mirror from 60 pcs.
Driver, voltage and plug are matched to the destination market on every order.
Every unit ships hang-ready with fittings in the carton.
Supply Terms
Minimum order quantity 1 pc; mixed orders across models count toward the same container.
Lead time 25-30 days from deposit or sample approval, whichever is later; pre-production samples in 7 days.
OEM and ODM accepted: custom sizes, finishes, logo and retail packaging.
ISTA 3A tested packaging with a 3% free spare-parts kit on every order.
FOB, CIF, CFR, DDP and EXW supported; quotation returned within 24 hours.
Sampling, payment terms, and customization for this model.
Standard sizes start at 1 pc. Custom sizes are quoted from 50 pcs; mixed sizes and models count toward the same container.
The driver, voltage and plug are matched to the destination market on every order. Confirm the country at quotation and the mirror ships ready to connect.
Yes. Aluminium, silver, copper-free silver or tempered mirror glass can be specified from 60 pcs, and a demister pad can be added to any model that does not list it as standard.
