Are these cabinets suitable for recessed installation?

CB-04 is designed for recessed installation and ships with a rough-in dimension sheet. The surface-mount models can also be semi-recessed with an optional trim kit. Confirm the wall build-up with us before framing, because stud depth varies by market.

What is the lead time for medicine cabinets?

Standard models ship 30-35 days after deposit. Custom widths, custom door splits and non-standard finishes take 35-40 days. Pre-production samples are ready in 7-10 days.

Is the interior lit as well as the mirror face?

Yes. An internal LED strip is fitted behind the door frame on all models, switched with the door so the shelves are lit when the cabinet is open. The internal lighting runs on the same driver as the face lighting.

Triple-Door Extra-Wide Surface-Mount LED Medicine Cabinet

SKU MW-CB-03 · Bathroom Mirrors

Minimum order1 pcs
Lead time30-35 days
Unit priceOn request (FOB / EXW)

Replies within 24 hours · NDA available for OEM projects

Hotel and multi-family bathroom fit-outs
North American renovation distributors
Healthcare and senior-living bathrooms
Bathroom retailers selling cabinet and vanity room sets

Specifications

Full Technical Specifications

Overview

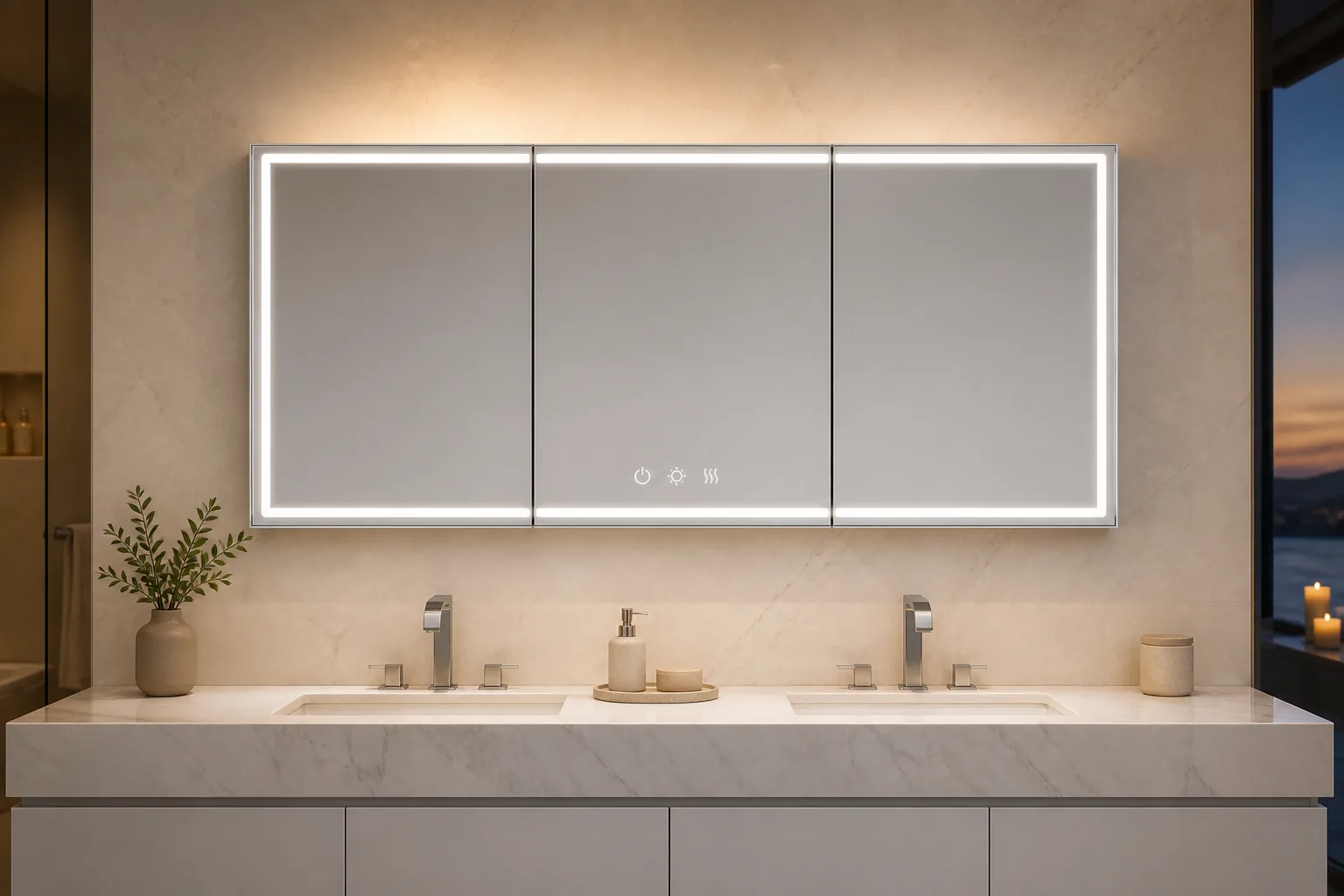

A triple-door surface-mounted cabinet spanning a double vanity, with front-lit LED, three-colour-temperature switching, demister and full internal shelf lighting across all three bays.

The strongest single category in the North American renovation market, supplied surface-mounted or recessed with integrated lighting, demisting, shaver socket and USB charging.

Technical Specifications

Parameter	Value
Model	MW-CB-03
Configuration	Triple door, surface-mounted
Touch controls	Power, dimming and colour temperature, anti-fog
Cabinet size	1200x700x130 mm
Cabinet body	1.0 mm anodised aluminium, welded corners, powder-coat option
Doors	5 mm mirror on both faces, soft-close concealed hinges
Interior	Two height-adjustable tempered glass shelves
Lighting	Front-lit LED with 3-CCT switching and stepless dimming
Electrical	AC 100-240V, IP44, shaver socket plus USB-A and USB-C
Anti-fog	Heated demister pad on the main door
Installation	Surface-mount or recessed (model dependent)
Standard sizes	600x700x130, 750x700x130, 900x700x130, 1200x700x130 mm
Compliance documents	Supplier RoHS material declarations; test reports issued with each quotation
Packaging	EPE corner protection, honeycomb board and five-layer carton; ISTA 3A tested
Warranty	3 years on electrical components, 2 years on hinges
Customisation	Custom sizes, frame finishes, logo and retail packaging; OEM and ODM accepted
Minimum order quantity	1 pc
Lead time	30-35 days

Applications

Hotel and multi-family bathroom fit-outs where storage has to be recovered from a shallow wall without losing mirror area.
North American renovation and remodelling distributors, where the mirrored cabinet is a standing replacement category rather than a trend item.
Healthcare and senior-living projects requiring lit storage at a controlled mounting height with tamper-resistant fixings.
Bathroom retailers and online sellers packaging a cabinet with a matching vanity as a room set.

Features & Advantages

Aluminium body with welded corners does not swell or delaminate the way a board carcass does in a bathroom.
Soft-close hinges are rated to 50,000 cycles, which is the practical difference between a hotel-grade and a residential cabinet.
Shaver socket and USB-A/USB-C charging are wired to the same isolated supply as the lighting.
Recessed models ship with a rough-in dimension sheet so the wall opening can be framed before the goods arrive.

Supply Terms

Minimum order quantity 1 pc; mixed orders across models count toward the same container.
Lead time 30-35 days from deposit or sample approval, whichever is later; pre-production samples in 7 days.
OEM and ODM accepted: custom sizes, finishes, logo and retail packaging.
ISTA 3A tested packaging with a 3% free spare-parts kit on every order.
FOB, CIF, CFR, DDP and EXW supported; quotation returned within 24 hours.
